PORTABLE WINCH

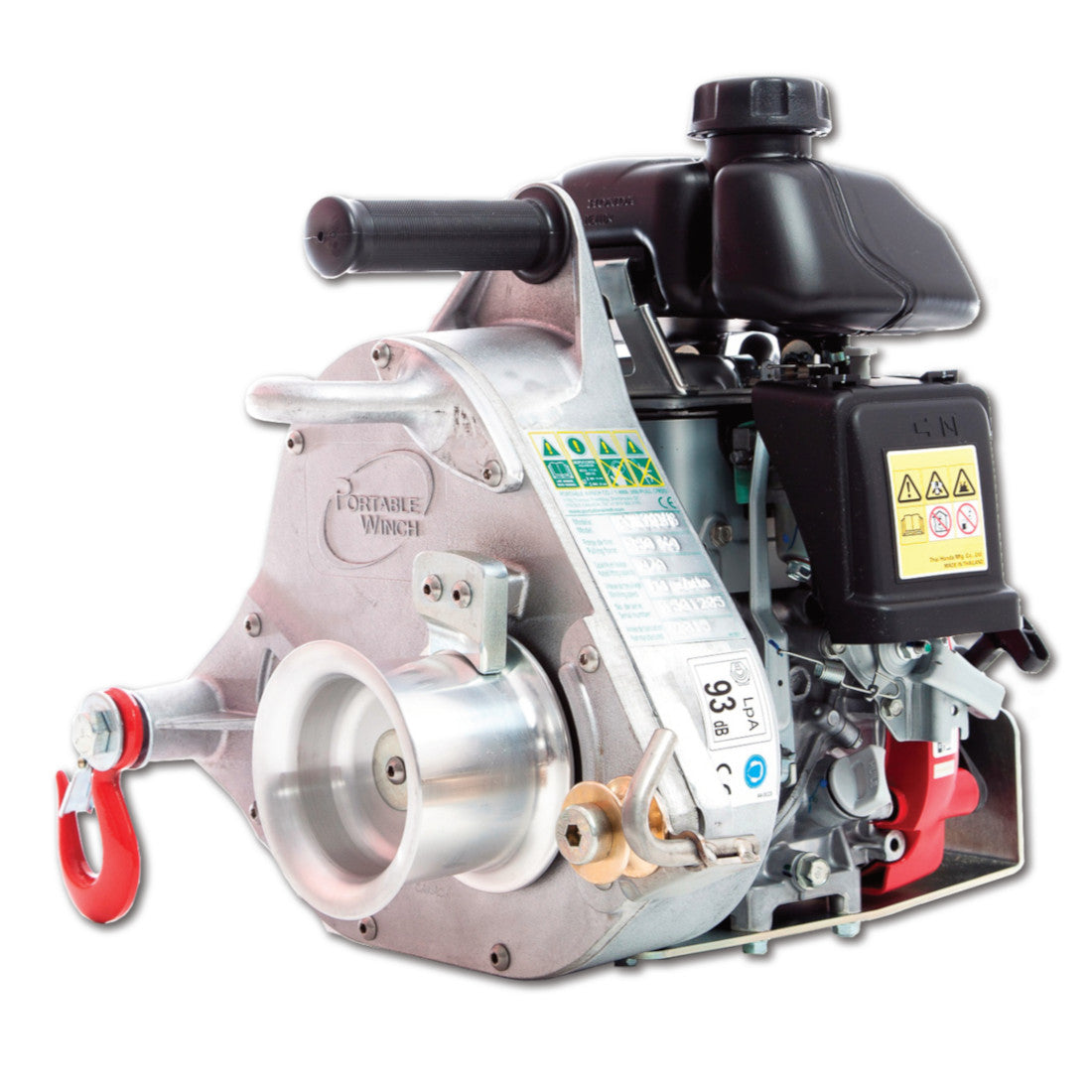

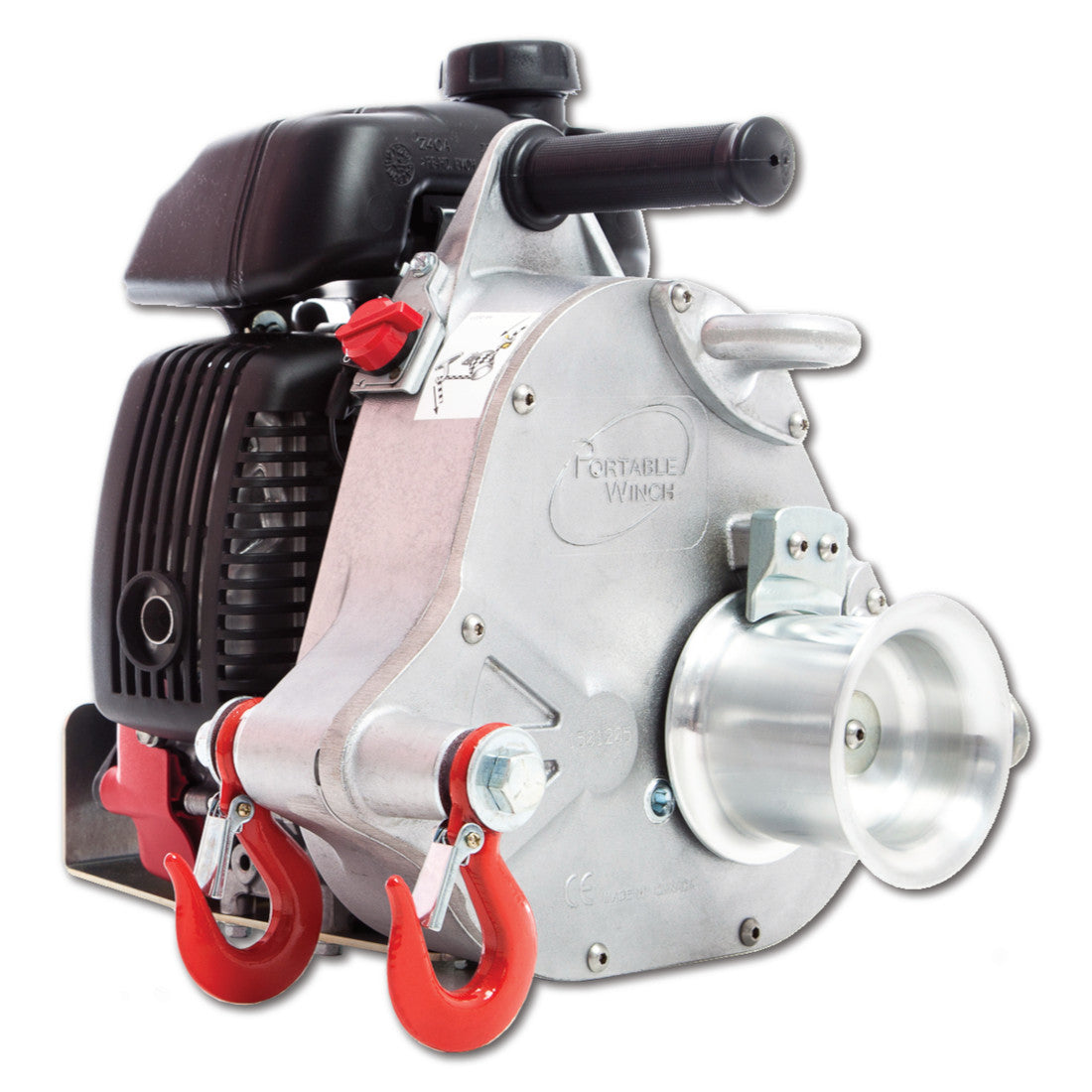

PORTABLE WINCH PCW5000-HS Petrol Pulling Winch (Honda GXH-50 Engine) - High Speed Version

PORTABLE WINCH PCW5000-HS Petrol Pulling Winch (Honda GXH-50 Engine) - High Speed Version

£1,828.73 + VAT (£2,194.48)
+ VAT (£0.00) £1,828.73 + VAT (£2,194.48)
Special Offer Sold out

PW-PCW5000-HS

Available to Order (2-7 day delay)

? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.

The high-speed version of the PCW5000.

It has been specially designed to install fibre optic cable. Powered by a Honda GXH-50 cc 4-stroke engine, this model can pull 350 kg at a speed of 35 meters per minute with its 85 mm diameter drum.

That’s twice the speed of the PCW5000!

It can be used with any length of double-braid polyester rope with a 10 or 12 mm diameter and with all Portable Winch equipment and accessories.

Features

Specifications

  • Installed Capstan Size: 85 mm (Optional 57 mm Drum Available - Increases Capacity)
  • Max Pull Capacity: 350 kg
  • Max Lifting Capacity: Not Rated For Lifting
  • Speed with Installed Capstan: 36 m/min
  • Engine/Motor: Honda 4-stroke GXH-50 cc
  • Gear Ratio: 53:1
  • Dry Weight: 16kg
